Adaptor Harness for Harley Davidson Speedometer/Tach #70900070A
« on: September 01, 2014, 05:26:36 PM »

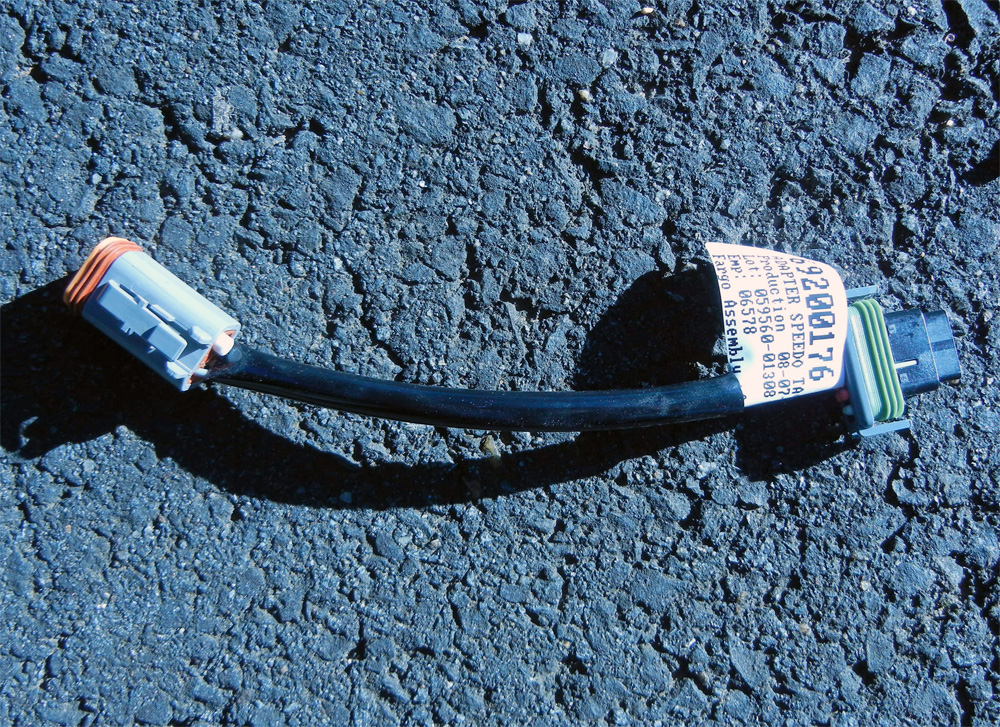

The following photo's show the adapter harness and the 4 pin and 12 pin connectors that come with the Harley Davidson speedometer/Tach #70900070A. The adapter harness is used to connect the new speedometer to the motorcycle to copy over the odometer data. The first photo shows the entire adapter harness. The tag on the adapter harness reads:

69200176 Rev: 0
ADAPTER SPEEDO TACH J1850
Production 08-07-13
Lot: 059560-01308 -A
Emp: 06578
Fargo Assembly of PA Made in USA

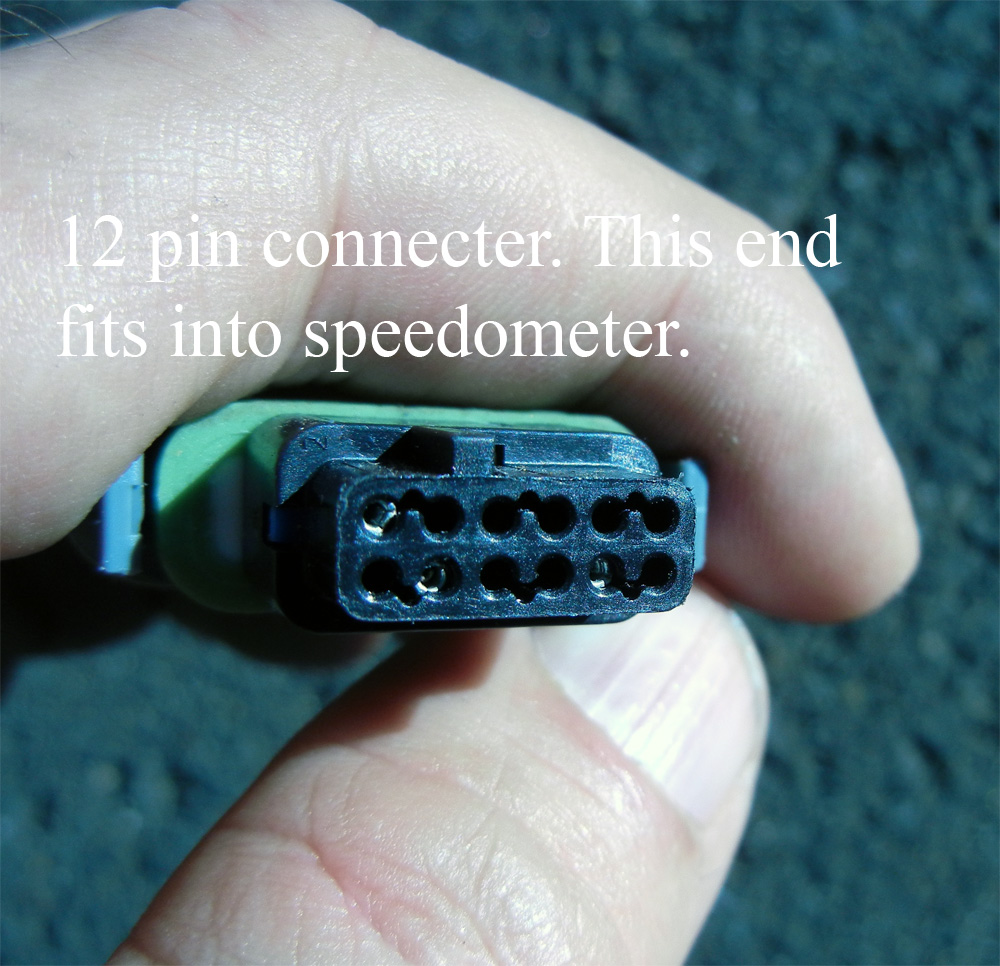

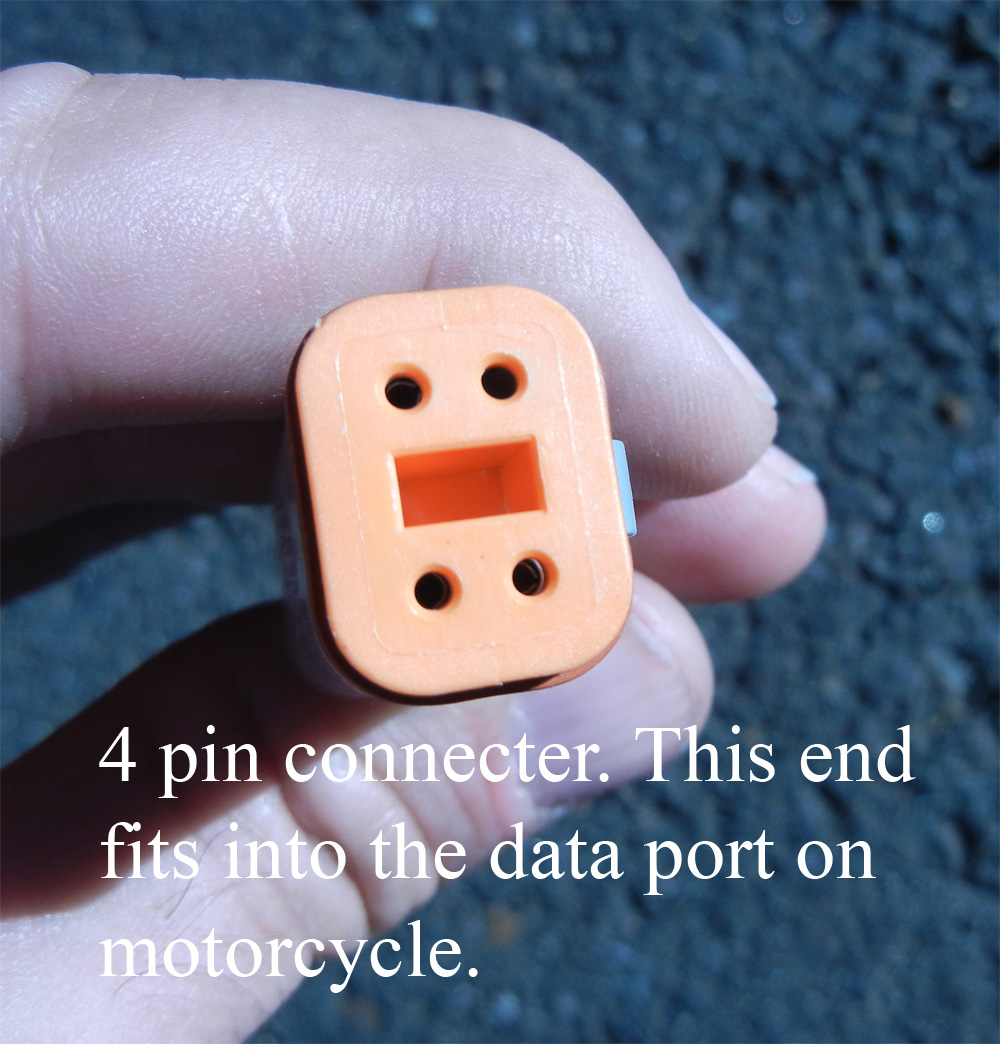

The second photo shows the 12 pin connector that fits into the new speedometer/Tach, and the 3rd photo shows the 4 pin connector that fits into the data port on the motorcycle.
